Complete H-alpha solar telescope with 152mm aperture and &<0.7 Angstrom bandwidth. With Feather Touch focuser, advanced air-pressure tuning system, and B1200 blocking filter. The large LS152THa is sure to provide a professional balance of resolution and performance!

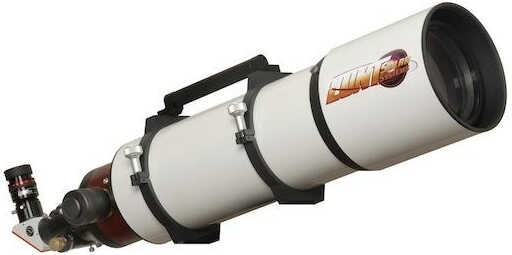

The LS152THa/B1200 is a complete telescope for observing the Sun in H-alpha, a precision aligned refractor with 152mm aperture (no central obstruction) and 900mm focal length. This large solar telescope is perfect for the ambitious solar observer!
If it's a perfect image you're after, the LS152THa provides a very large and high resolution image size. The 100% unobstructed system will perform to the highest level at both low and high magnifications. Utilizing both advanced hi-contrast coatings, and the advanced Doppler True Pressure Tuning system, the user will be able to experience crisp, sharp, high magnification visual images, as well as utilize this system for high-end digital imaging processes.
An internal Etalon with advanced air-pressure tuning system “Pressure Tuner” provides &<0.7 Angstrom bandwidth. This “Pressure Tuner” system allows a more accurate Etalon adjustment than other systems. The “Pressure-Tuner” system adapted the Etalon to varying altitudes and atmospheric pressures for always optimal performance. The Etalon is installed safely inside the telescope-tube.
Fine adjustment is achieved by a 2' Starlight-Instruments Feather-Touch focuser with 1.5' travel and 10:1 reduction.
Blocking-filter is the B1200. The B1200 is good for visual solar observing. Also solar imaging is possible by cameras with small CCD chip. We recommend an LS152THa with B1800 or B3400 blocking-filter by using cameras with middle or large sized CCD chips.
The star diagonal in which the blocking filter is installed, is equipped as standard for 1.25' eyepieces and with a T2 camera connection.
Also this large LS152THa telescope is upgradeable with the additional available DSII double-stack system. The optional DSII system is an internal double stack module with 'Pressure Tuner', that provides a bandwidth &<0.5 Angstrom. More details on the solar surface will become visible by reducing the bandwidth.
Features:
The kit includes:
Marka | LUNT Solar Systems |
Garanti, yıl | 2 |
EAN | 4007922035147 |
Paket boyutu (UxGxY), cm | 87x0x0 |
Nakliye Ağırlığı, kg | 14 |
Optik tasarım | refraktör |
Objektif merceği çapı (açıklık), mm | 152 |
Odak uzaklığı, mm | 900 |
Odaklayıcı | 2', 2 hızlı (10:1), 1,5' çekme tüpü hareketi (Starlight Instruments Feather Touch®) |
Engelleme filtresi | B1200 |
Bant genişliği, Angstrom | <0.7 |
Optik tüp kundak modu | kırlangıç kuyruğu plakası, sabitleme halkaları |
Kullanıcı seviyesi | deneyimli kullanıcılar |
Gözlemlenen nesne | Güneş |
Kese/çanta/torba sete dahildir | çanta |
Çanta/torba/sırt çantası sete dahildir | yes |
