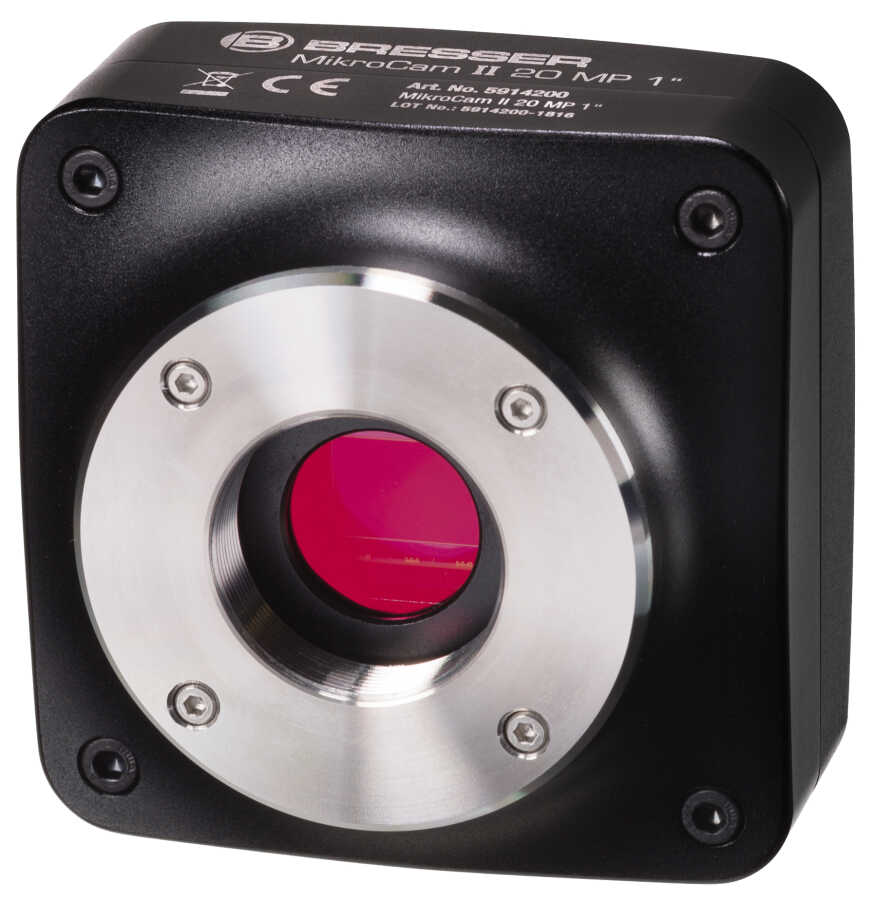

The Bresser MikroCam II 20 MP 1’’ microscope camera is the professional solution when it comes to microscope imaging.
This camera has a big 1’’ sensor (image area 13.6 x 8.8 mm); this is the biggest sensor of the MikroCam camera range. With this camera it is possible to document roughly the same field of view as it can be seen through the eyepiece (e.g. when using a 10x / 22mm). Other models will cover only 50% or less of the eyepiece field of view.
The Sony IMX183 CMOS-sensor is very sensitive and has extremely low image noise, which makes this camera especially suitable for contrast methods like dark field or phase contrast.
The MikroCam Lab II software comes with a wide range of professional functions, e.g. measurements in live view (calibration slide needed), mosaic, Focus-Stacking (for improved depth of field). All automatic functions (exposure time, gain, white balance etc) can be adjusted manually as well.
Due to the big sensor size the camera will not work with all microscope models. It might be possible that the optics will not illuminate the full sensor, so you experience vignetting. Usually this can be resolved by using the optional 1x optical adapter (item no. 5914001).
Please note that this camera model is not suitable for the stereo microscope BRESSER Science ETD-201. It will cover only a small field of view.
Features:
System requirements:
The kit includes:
| Specifications | |
|---|---|
| Data transmission | USB 3.0 |
| Resolution | 5440 x 3648 |
| Sensor type | CMOS Color |
| Pixel size (µm) | 2,4 x 2,4 µm |
| Active area | 13,06 x 8,76 mm |
| Operating system | Windows 8.1, Windows 10, Windows 11 |
| Focus Group | Advanced Amateurs, Professional users, Science and Research |
| Marka | Bresser GmbH, Almanya |
| Garanti, yıl | 2 |
| EAN | 4007922056517 |
| Paket boyutu (UxGxY), cm | 15x14.6x9.8 |
| Nakliye Ağırlığı, kg | 0.6 |
